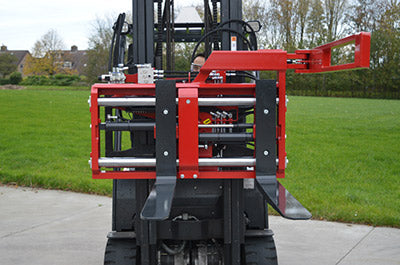

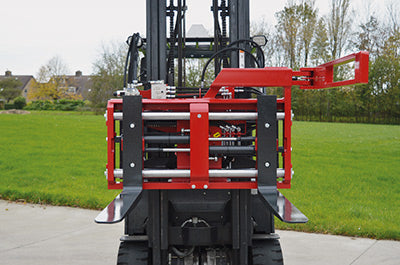

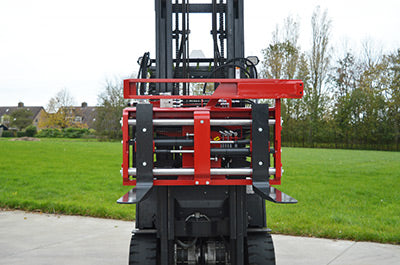

Box rotator with fork positioner
Installation on location is possible!
Tailored advice!
Customization possible!
Shipping calculated at checkout.
Prices are exclusive of VAT
- Maximum box width: 1800 mm
- 180° rotation (standard counterclockwise rotation)
- Forks are mounted on hard chromed shafts
- Adjustment range from 280-980 mm (center to center)
- Open construction for optimal view of the forks
- Foldable third fork with gas spring
- Third fork adjustable in width
- High-quality tilting shaft with plastic bearing bush
- Standard with 4 hose connection
- Including hoses and quick couplings
- Including screwed forklift forks FEM3A (125x45x1200 mm)
- Equipped with wear-resistant gear and rack (width 50 mm)
Technical data:
- Variant: K54C-V
-
max. carrying capacity: 3500 kg.
-
Fork carriage height (FEM): FEM3: 508mm
-
Stem length: 326 mm.
- Center of gravity: 290 mm.
-
Height 3rd fork*: 760 mm.
-
Weight: 655 kg.
*Calculated from the top of the fork to the bottom of the fork carriage.
| Variant | Max carrying capacity. | Center of Gravity | Height 3rd fork* | Weight |
| K54C-V | 3500 kg | 290 mm | 760 mm | 655 kg |
* Calculated from the top of the fork to the bottom of the fork carriage
| Possible options | Price |
| Electric hydraulic diverter valve | € 350,- |
| Integrated sideshift (6 hose connection) | € 550,- |
| Right-hand rotation instead of left-hand rotation | € 250,- |
| Quick lock | € 325- |
|
Tapered roller bearing instead of plastic bearing bush |
€ 950- |
|
Attachment to front loader/telehandler |
On request |
