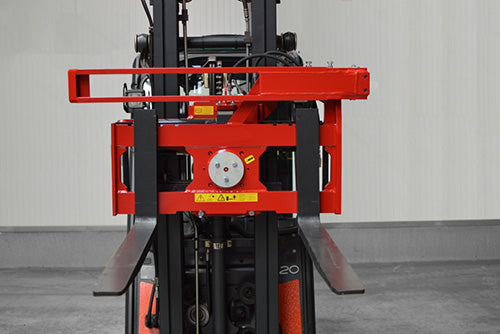

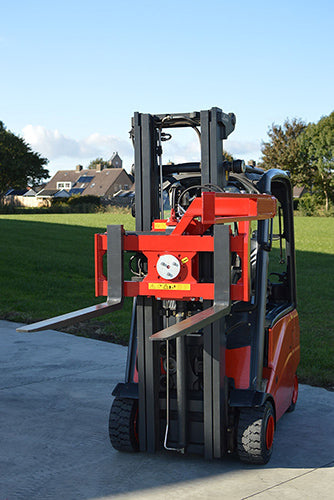

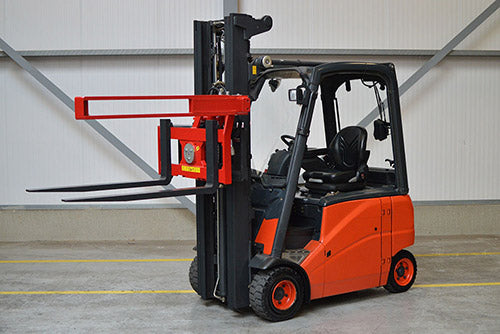

Box tipper

  • €3.275,00

Installation on location is possible!
Tailored advice!
Customization possible!

Prices are exclusive of VAT

  • Maximum box width: 1800 mm
  • 180° rotation (standard counterclockwise rotation)
  • Open construction for optimal view of the forks

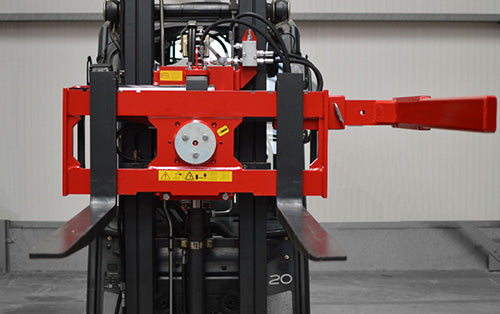

  • Pluggable or foldable third fork by means of a gas spring
  • Third fork adjustable in width
  • High-quality tilting shaft with plastic bearing bush
  • Including hoses and quick couplings
  • Exclusive forklift forks
  • Equipped with wear-resistant replaceable gear and rack (width 50mm)

        Technical data:

        • Variants: K54A-l* | K54A-O*
        • Fork carriage height (FEM): FEM2:407 mm
        • Stem length: 165 mm
        • Fork carriage width: 1000 mm

        • Variants: K54C-l* | K54C-O*
        • Fork carriage height (FEM): FEM3:508 mm
        • Stem length: 185 mm
        • Fork carriage width: 1200 mm


        Variant Max carrying capacity. Center of Gravity Height 3rd fork* Weight
        K54A-l* 2500 kg 133 mm  360 mm 240 kg
        K54A-O* 2500 kg 158 mm 660 mm 270 kg
        K54C-l* 3500 kg 134 mm 460 mm 315 kg
        K54C-O* 3500 kg 158 mm 760 mm 345 kg


        * I = plug-in model, O = folding model
        * Calculated from the top of the fork to the bottom of the fork carriage



        Possible options Price
        Turning stroke 200° instead of 180° € 200,-
        Right-hand rotation instead of left-hand rotation € 250,-
        Upper fork (removable) € 450,-
        Hydraulic connection on fork carriage (rotating) € 325,-
        Hydraulic connection (not rotating) € 225,-
        Quick lock € 325,-
        Tapered roller bearing instead of plastic bearing bush € 950,-
        Attachment to front loader/telehandler On request



        For more information, please contact us!
