Forward box tipper 135°
Installation on location is possible!
Tailored advice!
Customization possible!
Prices are exclusive of VAT

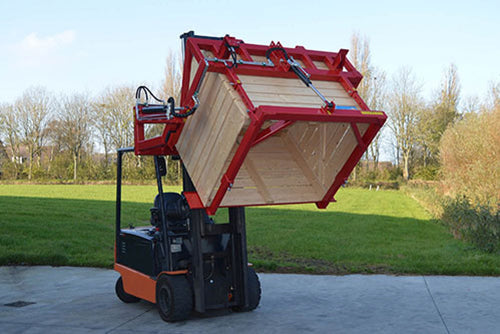

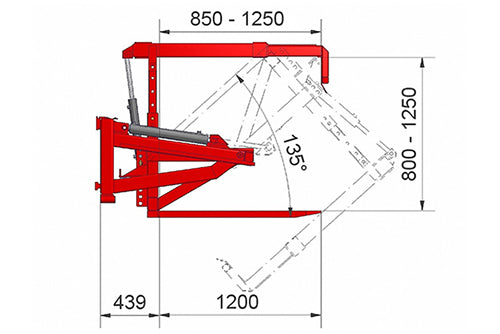

- 135° tilt angle
- Suitable for boxes with and without bottom deck

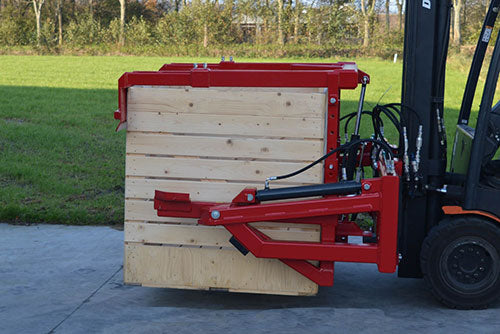

- Arms top clamp exactly on box edge
- Box depth adjustable from 850 to 1200 mm
- Box height adjustable from 850 to 1250 mm
- Quick locking system FEM2 and FEM3
- Standard with two fixed forks
- Including hoses and quick couplings
- Standard with sequence valve (2 hose connection)
Technical data:
- Variants: K80-1200 | K80-1400 | K80-1600 | K80-1800 | K80-2000
- Front length: 440 mm
- Center of Gravity: 560 mm
| Variant | Max carrying capacity. | Box width (Max) | Fork spacing | Weight |
| K80-1200 | 2500 kg | 1200 mm | 700 mm (h.o.h) | 580 kg |
| K80-1400 | 2500 kg | 1400 mm | 700 mm (h.o.h) | 610 kg |
| K80-1600 | 2500 kg | 1600 mm | 800 mm (h.o.h) | 640 kg |
| K80-1800 | 2500 kg | 1800 mm | 800 mm (h.o.h) | 670 kg |
| K80-2000 | 2500 kg | 2000 mm | 1000 mm (h.o.h) | 700 kg |
| Possible options | Price |
| Attachment to front loader/telehandler | Click here |
Contact:
For more information or to request a quote, please contact us at info@hetotuinbouw.nl or call us on +31 (0) 71 331 9111.
