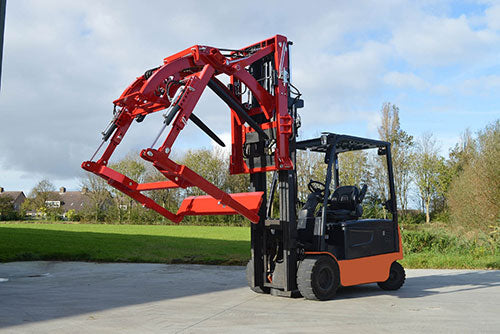

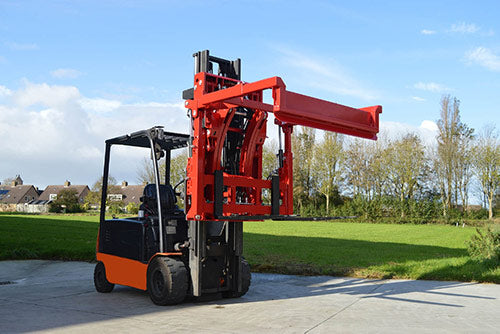

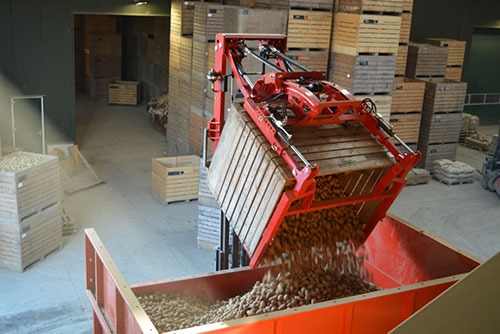

Forward box tipper 150°
Installation on location is possible!
Tailored advice!
Customization possible!
Shipping calculated at checkout.
Prices are exclusive of VAT
- No pivot points next to the box

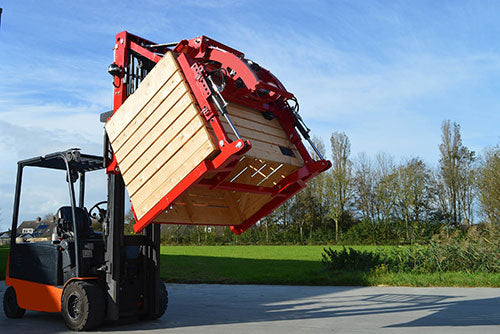

- 150° tilt angle
- Suitable for boxes with and without bottom deck

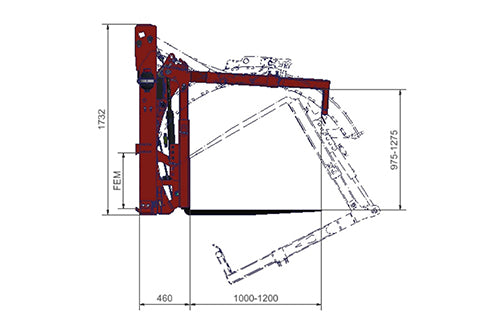

- Box depth adjustable from 1000 to 1200 mm
- Box height adjustable from 975 to 1275 mm
- Quick locking system FEM3
- With two adjustable forks
- Including hoses and quick couplings
- Standard with sequence valve (2 hose connection)
Technical data:
- Variant: K95
- Front length: 460 mm
- Center of Gravity: 355 mm
| Variant | Max. rotational power | Max. carrying capacity | Weight |
| K95 | 2000 kg | 2750 kg | 975 kg |
| Possible options | Price |
| Quick locking system FEM4 (instead of FEM3) | € 300,- |
| Top clamp on box edge for boxes with a width of 1800 mm | € 150,- |
|
Top clamp with extendable parts for boxes from 1800 mm to 2400 mm wide |
€ 125,- |
|
Equipped with widened fork carriage + 4 adjustable forks (for 2400 mm wide boxes) |
€ 1100,- |
| Attachment to front loader/telehandler | Click here |
Contact:
For more information or to request a quote, please contact us at info@hetotuinbouw.nl or call us on +31 (0) 71 331 9111.
