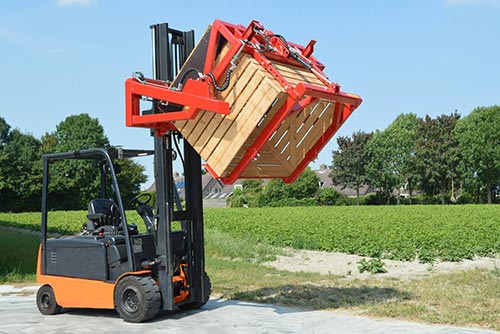

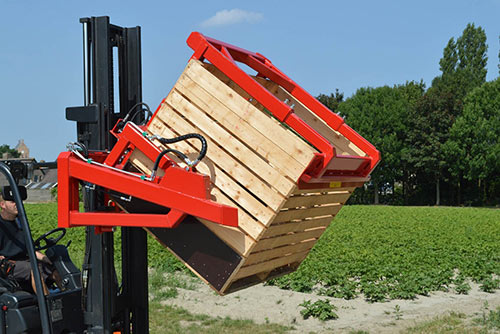

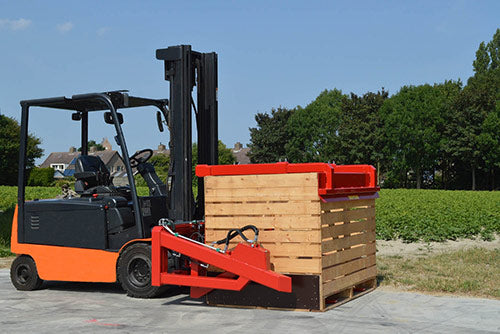

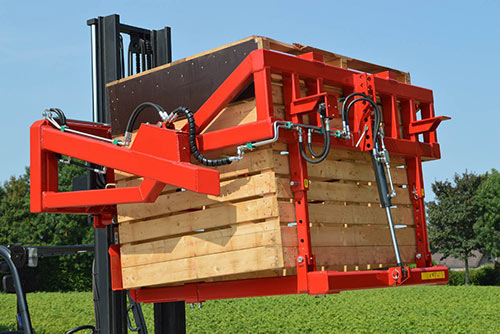

Forward box tipper 180°
Installation on location is possible!
Tailored advice!
Customization possible!
Shipping calculated at checkout.
Prices are exclusive of VAT
- 180° tilt angle
- Suitable for boxes with and without bottom deck
- Arms top clamp exactly on box edge

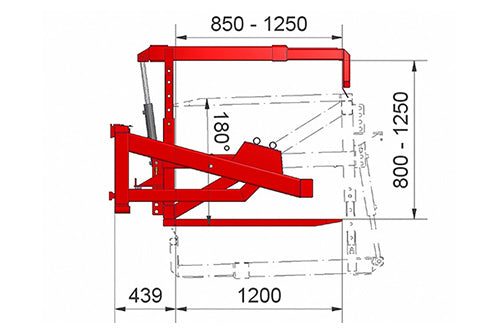

- Box depth adjustable from 850 to 1200 mm
- Box height adjustable from 850 to 1250 mm
- Quick locking system FEM2 and FEM3
- Standard with two fixed forks
- Including hoses and quick couplings
- Standard with sequence valve (2 hose connection)
Technical data:
- Variants: K85-1200 | K85-1400 | K85-1600 | K85-1800 | K85-2000
- Front length: 440 mm
- Center of Gravity: 625 mm
| Variant | Max carrying capacity. | Box width (Max) | Fork spacing | Weight |
| K85-1200 | 2500 kg | 1200 mm | 700 mm (h.o.h) | 700 kg |
| K85-1400 | 2500 kg | 1400 mm | 700 mm (h.o.h) | 725 kg |
| K85-1600 | 2500 kg | 1600 mm | 800 mm (h.o.h) | 745 kg |
| K85-1800 | 2500 kg | 1800 mm | 800 mm (h.o.h) | 765 kg |
| K85-2000 | 2500 kg | 2000 mm | 1000 mm (h.o.h) | 790 kg |
| Possible options | Price |
| Attachment to front loader/telehandler | Click here |
Contact:
For more information or to request a quote, please contact us at info@hetotuinbouw.nl or call us on +31 (0) 71 331 9111.
