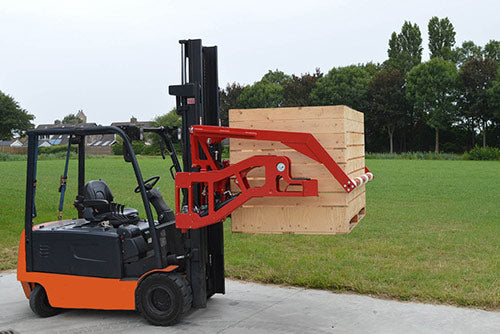

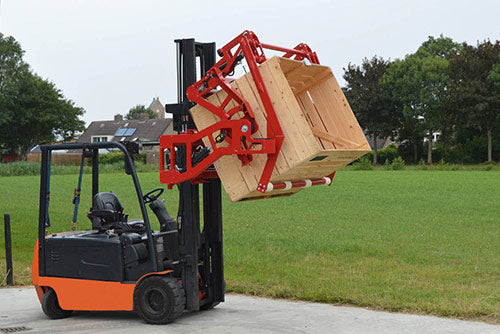

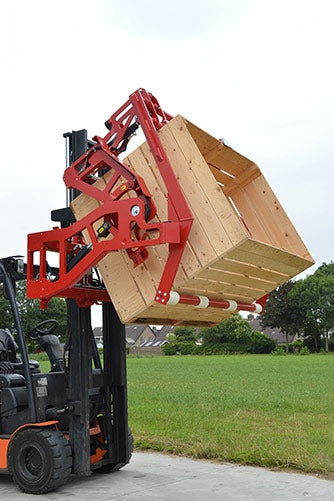

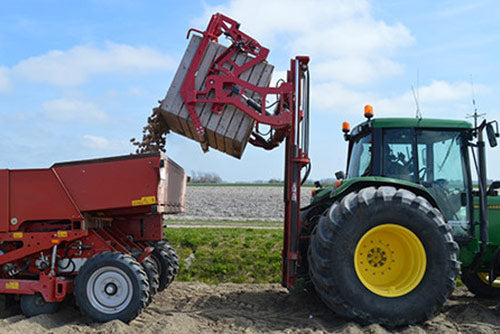

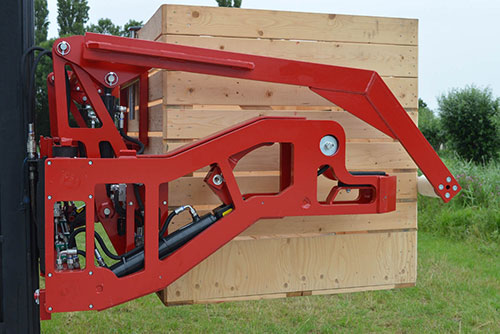

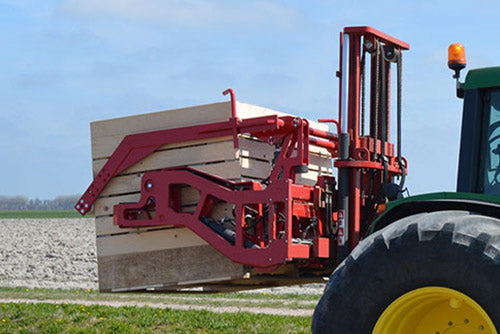

Forward box tipper 180° (Heavy duty)
Installation on location is possible!
Tailored advice!
Customization possible!
Shipping calculated at checkout.
Prices are exclusive of VAT
- 180° tilt angle
- Equipped with roll-over clamp as standard
- Suitable for crates with and without underdeck
- Crate height adjustable from 800 to 1250 mm
- Quick-lock system FEM2 and FEM3 (K90-2400: FEM3 and FEM4)
- With two adjustable forks (K90-2400: four adjustable forks)
- Includes hoses and quick couplings
- Comes with sequence valve (2 hose connection) as standard
Technical data
- Variants: K90-1600 | K90-1800 | K90-2000 | K90-2240 | K90-2400
- Front length: 460 mm
- Center of Gravity: 530 mm (K90-2240: 460mm | K90-2400: 560mm)
| Variant | Load Capacity (Max) |
Crate Width (Max) | Machine Width (Max) |
Weight |
| K90-1600 | 2500 kg | 1600 mm | 2020 mm | 895 kg |
| K90-1800 | 2500 kg | 1800 mm | 2220 mm | 920 kg |
| K90-2000 | 2500 kg | 2000 mm | 2420 mm | 945 kg |
| K90-2240 | 2500 kg | 2240 mm | 2660 mm | 970 kg |
| K90-2400 | 2500 kg | 2400 mm | 2820 mm | 1065 kg |
Contact:
For more information or to request a quote, please contact us at info@hetotuinbouw.nl or call us on +31 (0) 71 331 9111.
