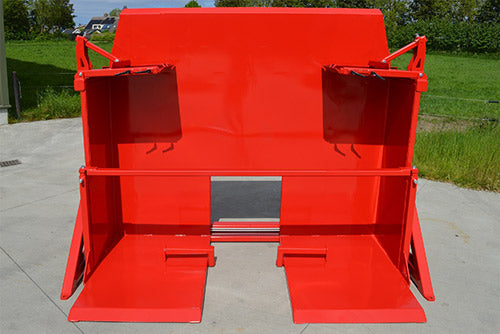

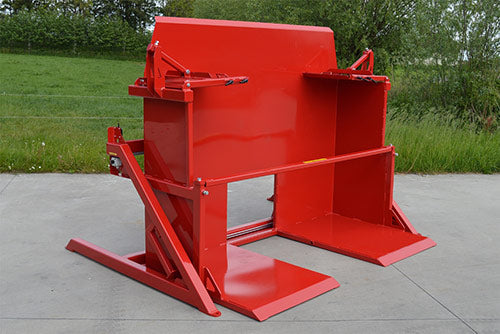

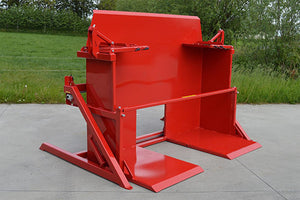

Stationary box tipper
Installation on location is possible!
Tailored advice!
Customization possible!
Prices are exclusive of VAT
- Stationary box rotator with a maximum tipping angle of 142º
- Standard dumping height is 1125 mm

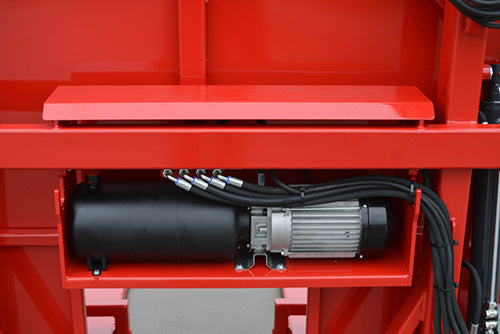

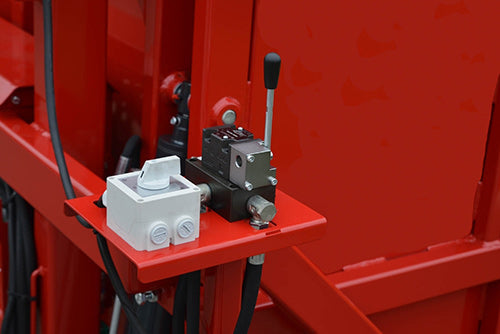

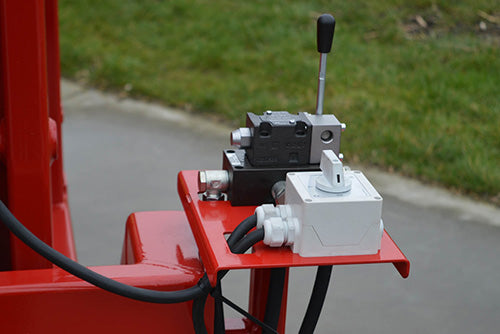

- Aggregate + controls directly on the frame
- Box height adjustable from 800 to 1400 mm
- Maximum box depth 1200 mm
- Adjustable outlet funnel
- Easy to move with forklift
- Equipped with 5-pole CEE counter puller
| Variant | Max capacity | Total width | Weight |
| K60-1200 | 2000 kg | 1720 mm | 855 kg |
| K60-1400 | 2000 kg | 1920 mm | 875 kg |
| K60-1600 | 2000 kg | 2120 mm | 895 kg |
| K60-1800 | 2000 kg | 2320 mm | 915 kg |
| K60-2000 | 2000 kg | 2520 mm | 935 kg |
| K60-2240 | 2000 kg | 2760 mm | 1015 kg |
| K60-2400* | 2000 kg | 2920 mm | 1060 kg |
* Fixed outlet funnel instead of adjustable outlet funnel
| Possible options | Price |
| Different discharge height | € 375 |
| Mechanical dosing slide | € 975 |
| Hydraulic dosing slide | € 1525 |
| Wireless remote control (direct control) | € 1875 |
| Automatic tilt control | On request |

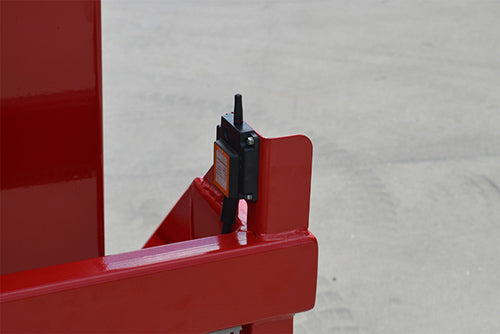

| Wireless remote control | |
|

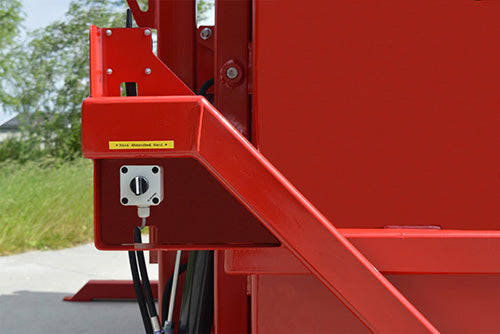

Wireless remote control, 2-button, direct operation (including control on frame by switch) |
|
| Range: approx. 100 meters (depending on the environment) | |
| Automatic tilt control | |
| Tipper automatically tilts forward. Once fully tilted, the rotator jerks several times. | |
| Walk-in protection with 2 photocells | |
| Wired control pear for both automatic and manual operation |
Contact:
For more information or to request a quote, please contact us at info@hetotuinbouw.nl or call us on +31 (0) 71 331 9111.
