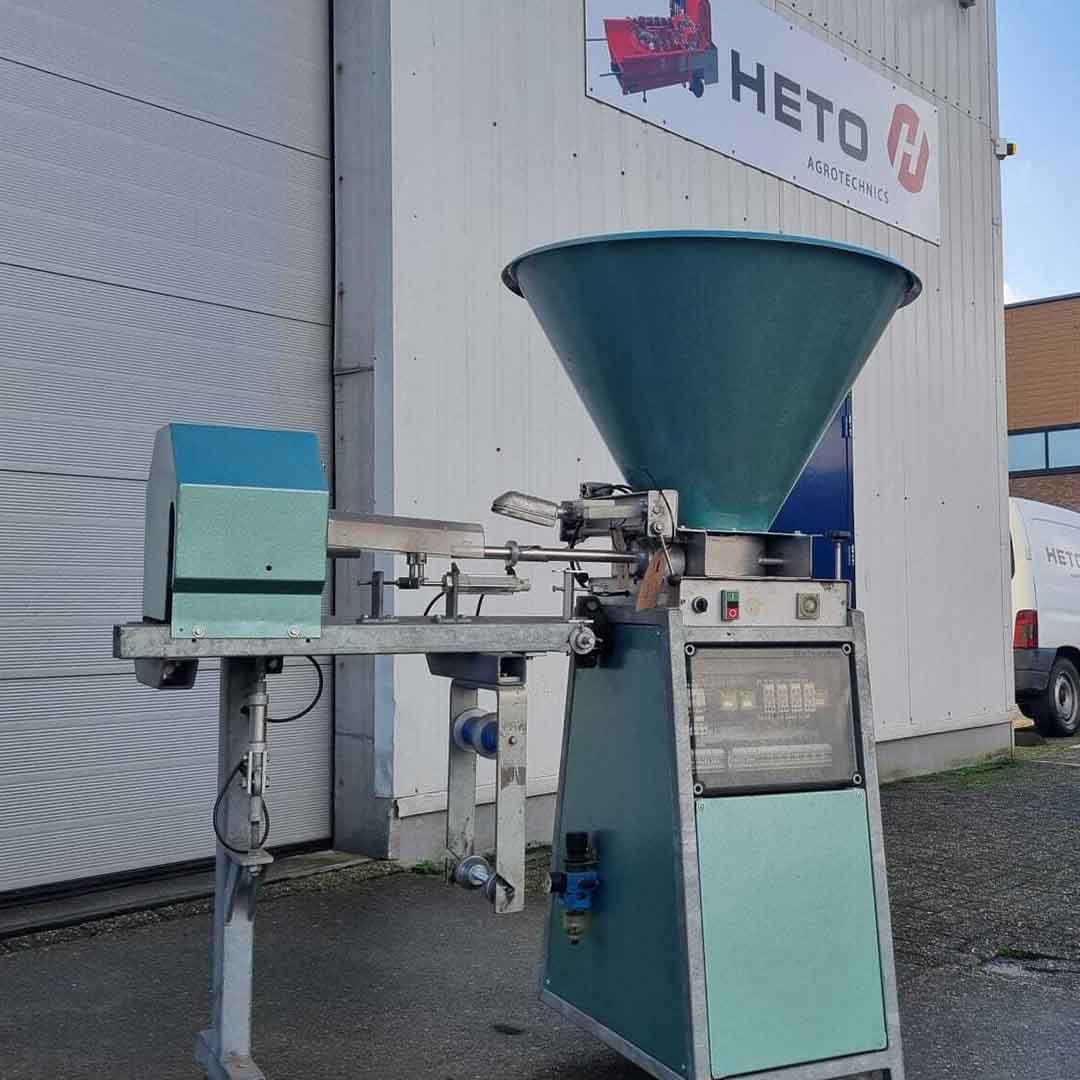

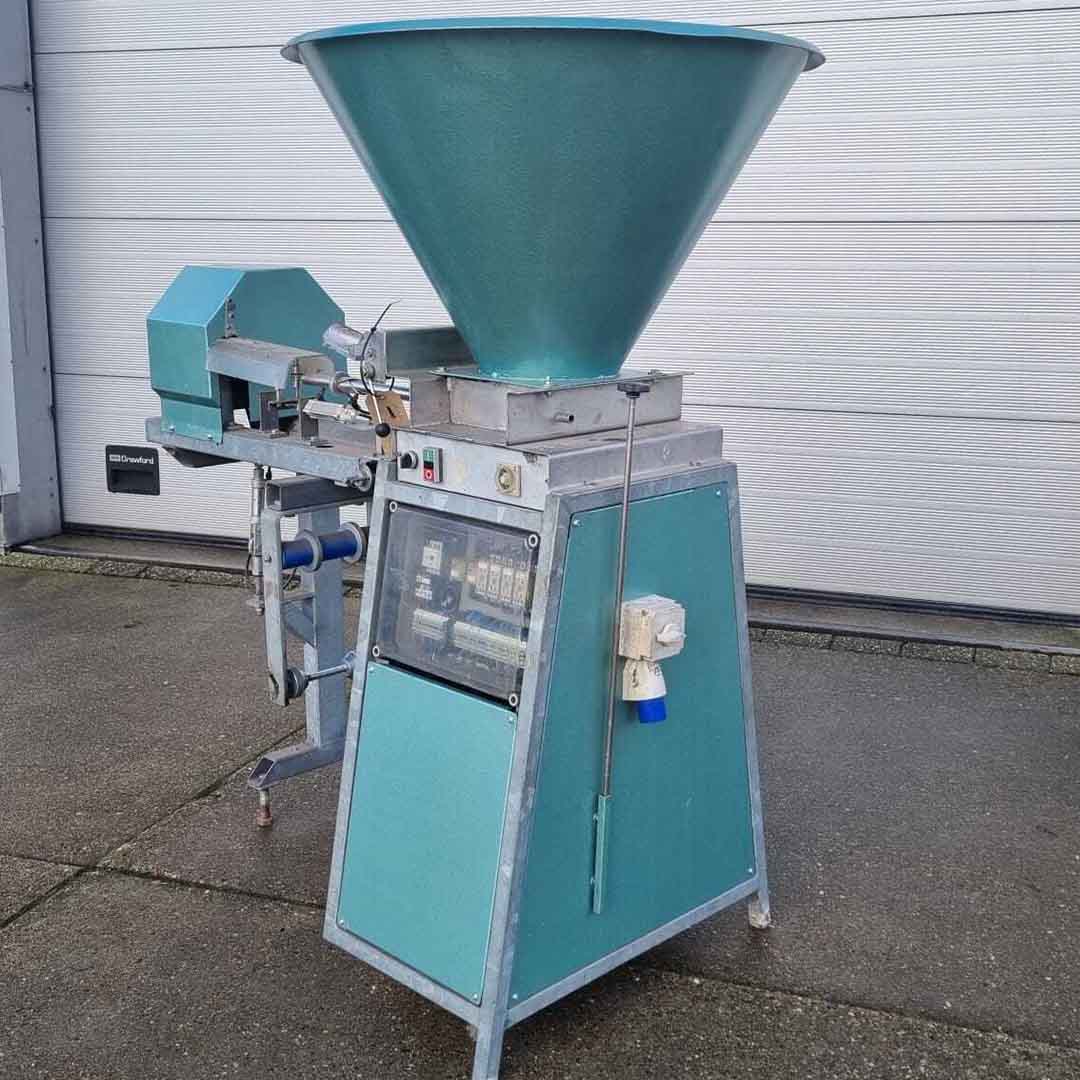

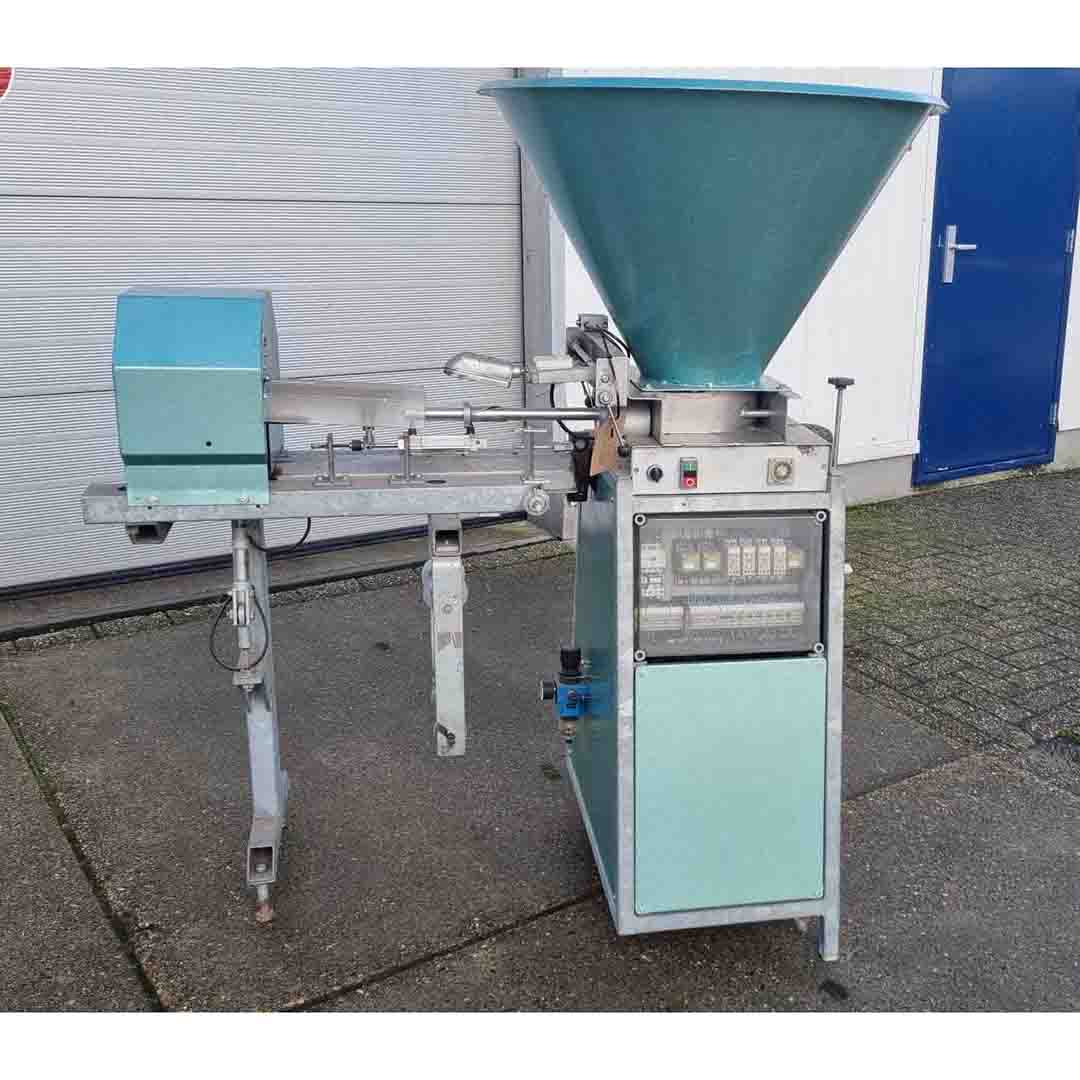

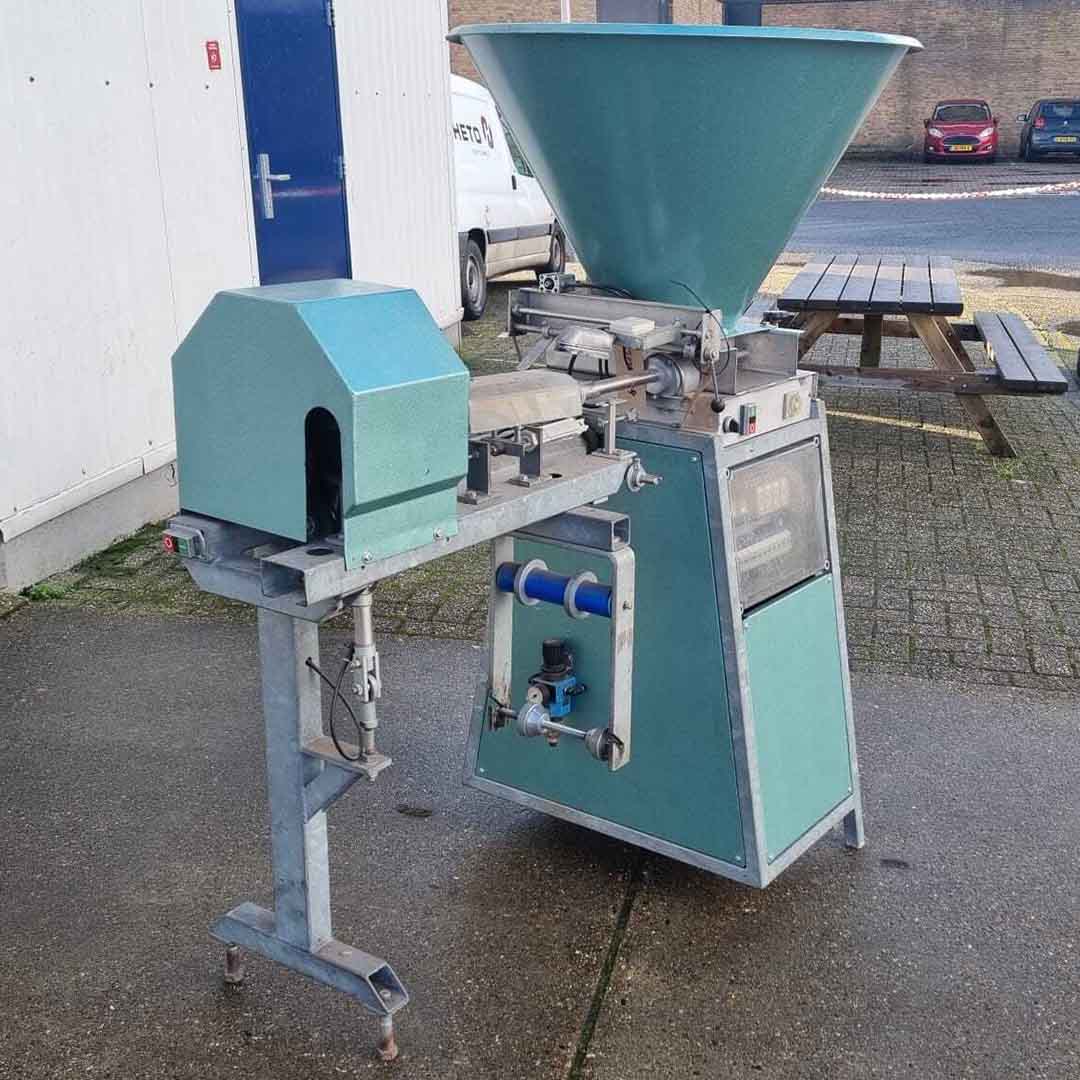

HETO Standard Paperpot Machine, suitable for various plug sizes

HETO Standard Paperpot Machine, suitable for various plug sizes

Operation:
With the paperpot machine it is possible to produce paperpots using soil and adhesive fleece. The loose/cohesive cutting soil is fed through the filling hopper equipped with a driven agitator. The agitator ensures a consistent feed to the venturi. The adhesive fleece is unwound via a roll and guide roll and folded into a tube through a folding unit. At the top side, the seam is bonded together using a heating element. In this way, an endless “sausage” with the desired diameter is created. At the same time, the cutting soil is supplied by compressed air through a venturi. This so-called “sausage” is fed through prickers and cut to the required length by a high-speed self-sharpening knife.

The machine stands out due to the following features:

• The installation is built in accordance with CE standards (Machinery Directive)
• High-quality construction and low maintenance
• Extremely light and homogeneous paperpots for optimal rooting
• Adjustable density and length of the paperpots
• Easy to use
• Central fault detection and emergency stop

• Possibility to change the size of the paperpots (additional kit required)

Technical specifications:

• Length: 2570 mm
• Width: 692 mm
• Height: 1665 mm
• Capacity per hour: up to 5,000 to 10,000 pots per hour (depending on paperpot size and speed)
• Weight: 270 kg
• Connected load: 1 kW

• Power supply: 3ph./400V.50Hz

For more information, please contact us! Also take a look at our full range of adhesive fleece.
