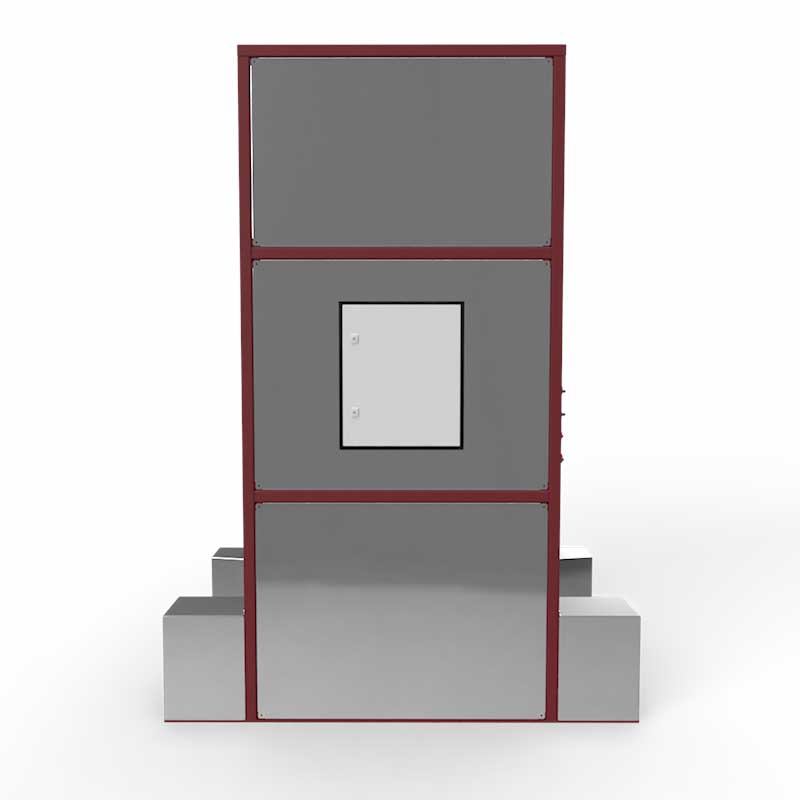

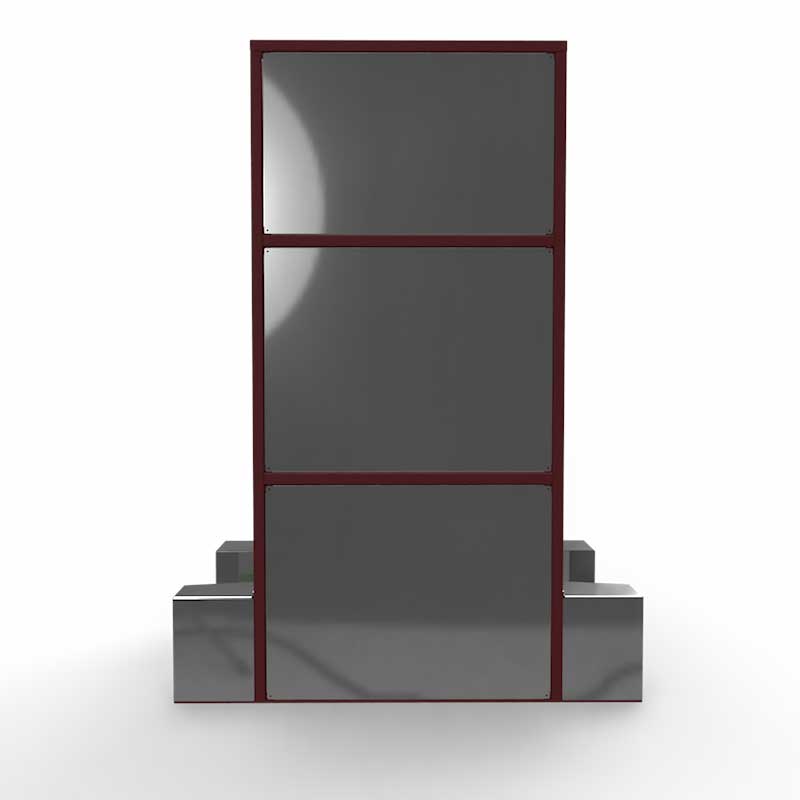

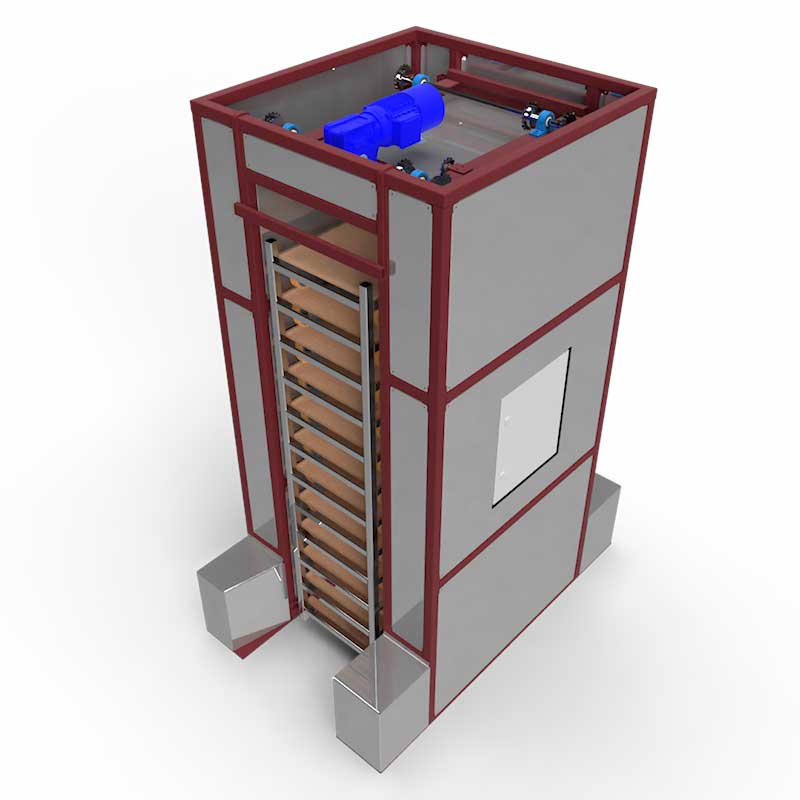

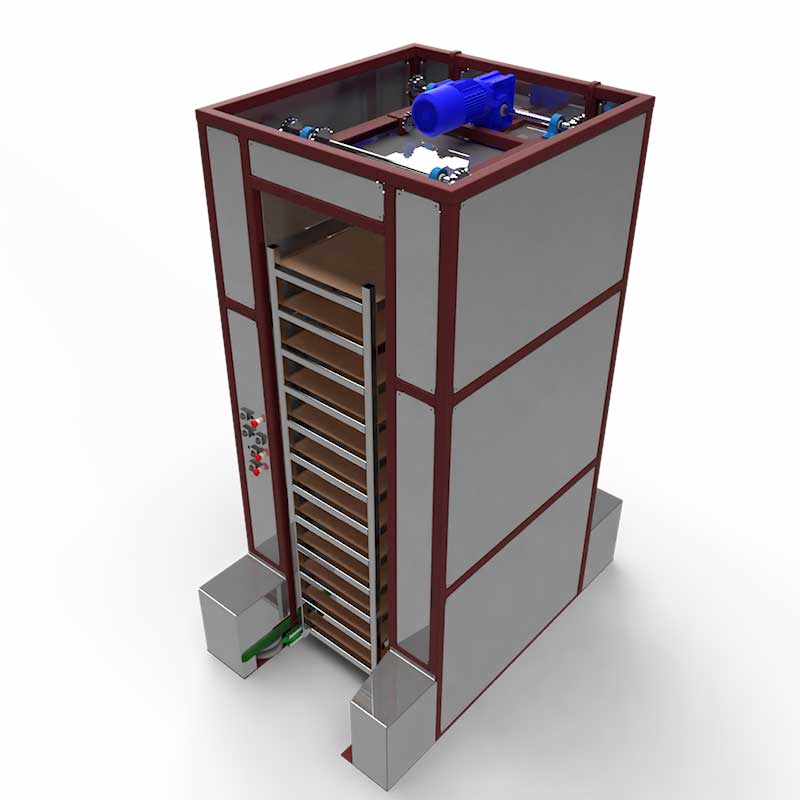

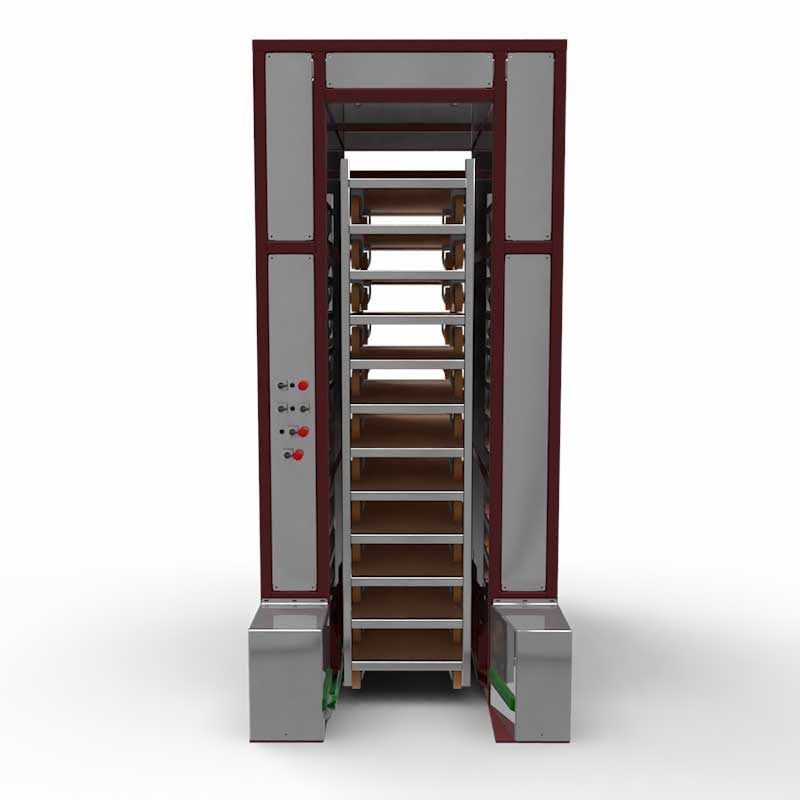

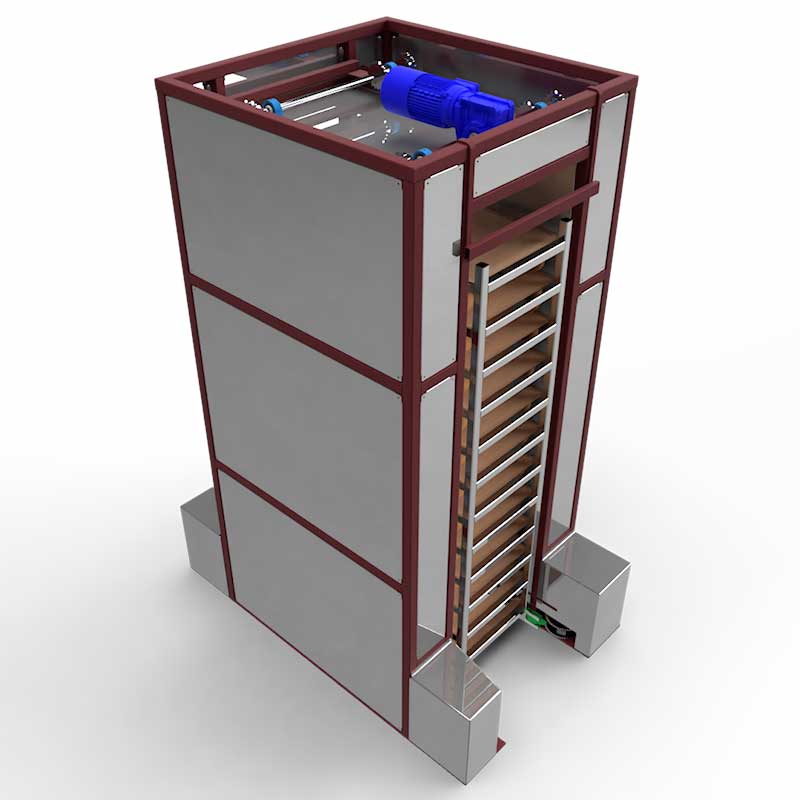

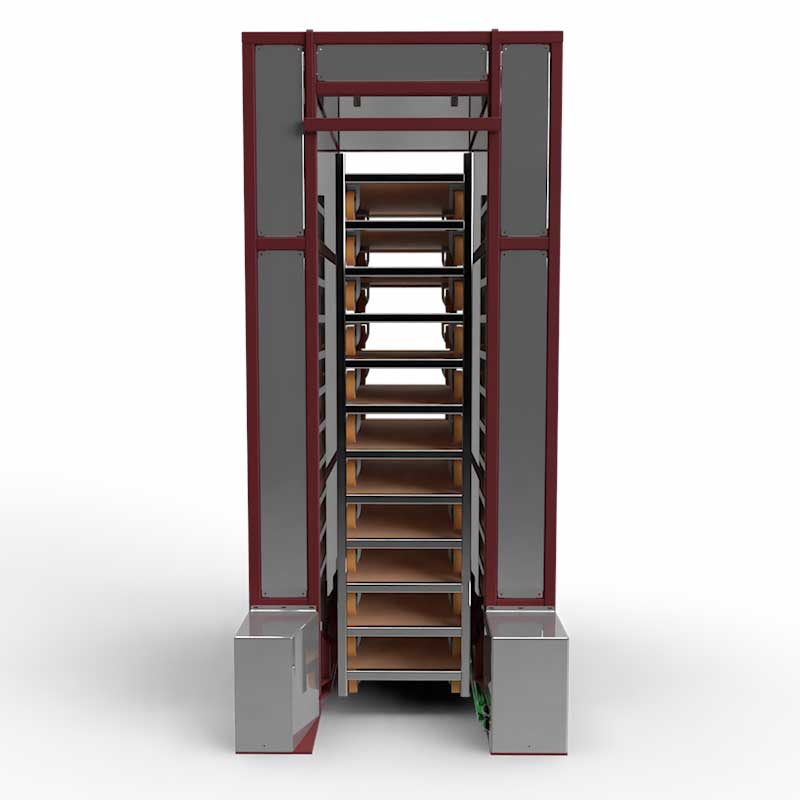

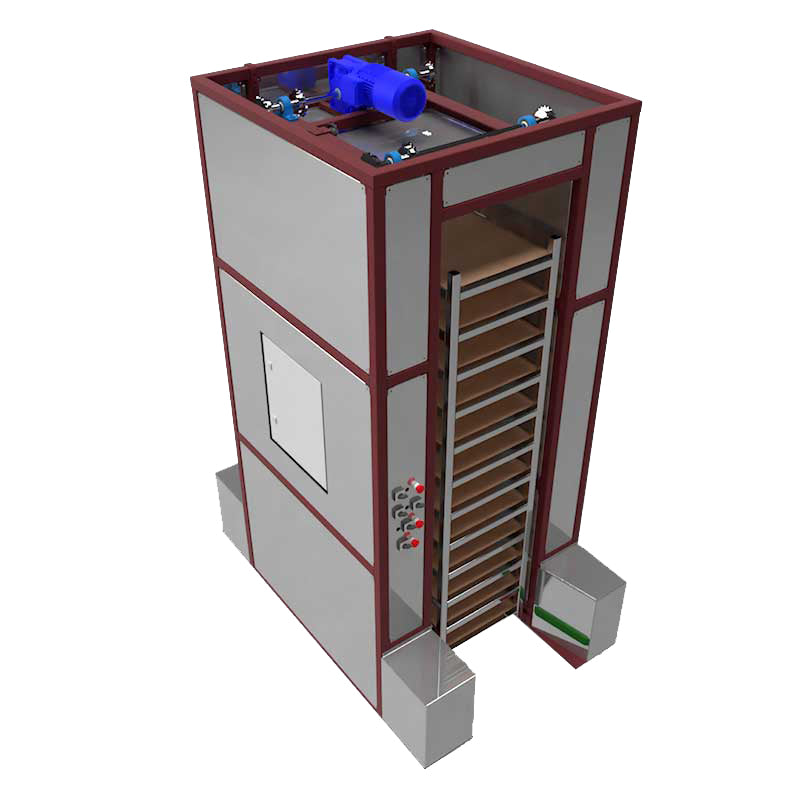

Automatic Danish Trolley Stacker / Destacker

This machine has been developed for the automatic stacking and destacking of (Danish) trolleys.

Operation

The automatic destacking machine is designed for Danish trolleys and, with a few optional adapters, can also be used for Euro trolleys. A stack of trolleys is placed inside the machine, after which the machine is started. The machine lifts the entire stack except for the bottom trolley. The bottom trolley is then pushed out and is ready for use. This process is repeated until the complete stack has been destacked. Stacking is carried out in the same way, but in reverse order.

Features:

• Robust, high-quality construction with low maintenance requirements
• Enclosed frame for optimal safety
• Electric and pneumatic lifting mechanism for stacking and destacking
• Drive-through system
• Can be moved with a pallet truck using an auxiliary frame
• Photocell for maximum stacking height
• Automatic start/stop
• Easy operation
• Built in accordance with applicable CE Machinery Directive requirements

Technical specifications:

• Main frame (L × W × H): 205 × 135 × 290 cm
• Maximum stacking height: 245 cm
• Stack capacity: 14 Danish trolleys
• Capacity: up to 300 trolleys per hour
• Lifting frame motor: 1.1 kW
• Conveyor chain motor: 0.25 kW
• Weight: 600 kg
• Required compressed air: 6 bar
• Power supply: 3-phase, 400 V / 50 Hz + N + PE

Optional installation of the machine is also available.
